MC100ELT21D
Manufacturer:
On Semiconductor
Mfr.Part #:
MC100ELT21D
Datasheet:
Description:

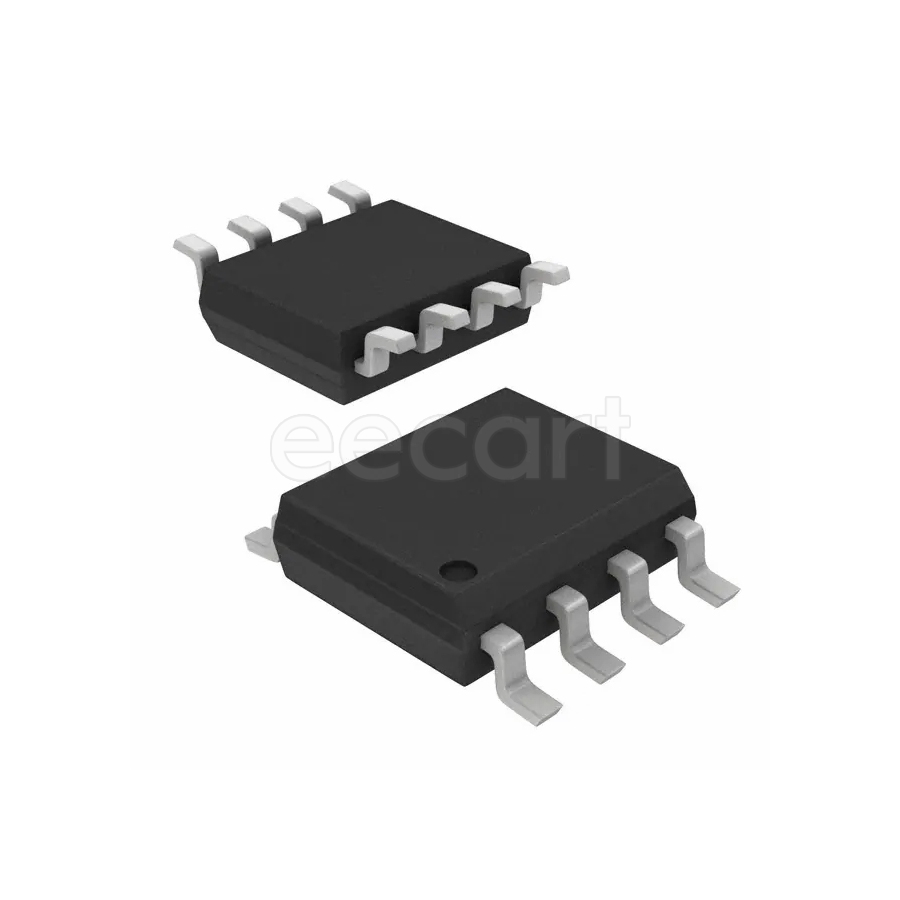

Voltage Level Shifters SOIC-8 Narrow SMD/SMT Non-Inverted PECL TTL
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Type | PECL to TTL |
| Number of Circuits | 1 |
| Operating Supply Voltage | 5 V |
| Output Type | Non-Inverted |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Turn-On Delay Time | 5.5 ns |
| Propagation Delay | 5.5 ns |
| High Level Output Current | -3 mA |
| Low Level Output Current | 24 mA |
| Logic Function | Translator |
| Channels per Circuit | 1 |
| Input Signal | PECL |
| Output Signal | TTL |
Out of Stock
